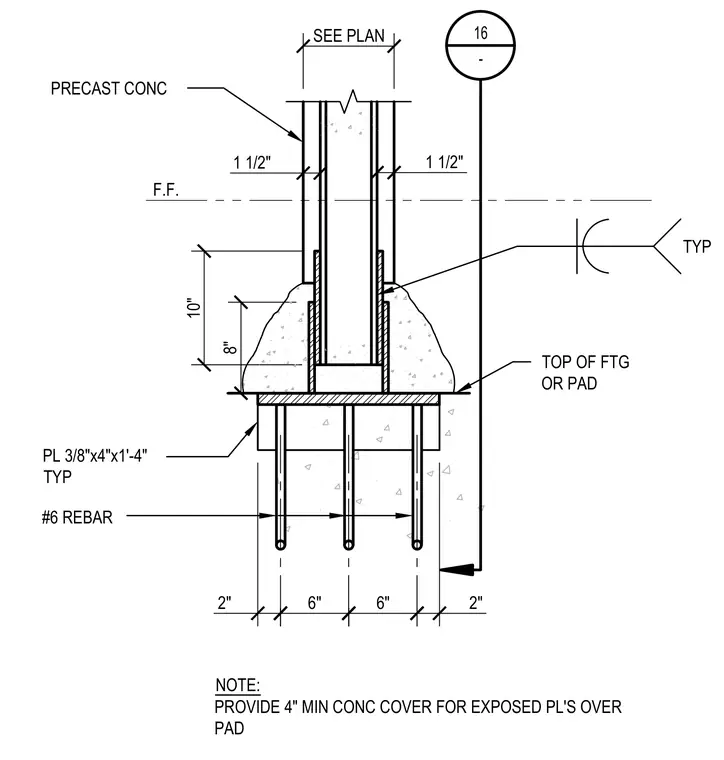

A precast concrete wall panel ties into a reinforced concrete footing or pad with embedded steel plates and reinforcing dowels. A 3/8-inch by 4-inch by 1-foot 4-inch steel plate is anchored below the footing top with #6 reinforcing bars spaced at 6 inches on center. The precast panel bears on the assembly near the finished floor line, maintaining a 4-inch minimum concrete cover over exposed plates as specified in the drawing notes.
NOTE: PROVIDE 4" MIN CONC COVER FOR EXPOSED PL'S OVER PAD 1 1/2" SEE PLAN 8" 10" PL 3/8"x4"x1'-4" TYP 1 1/2" 16 - 2" 2" #6 REBAR TOP OF FTG OR PAD PRECAST CONC F.F. 6" 6" TYP
