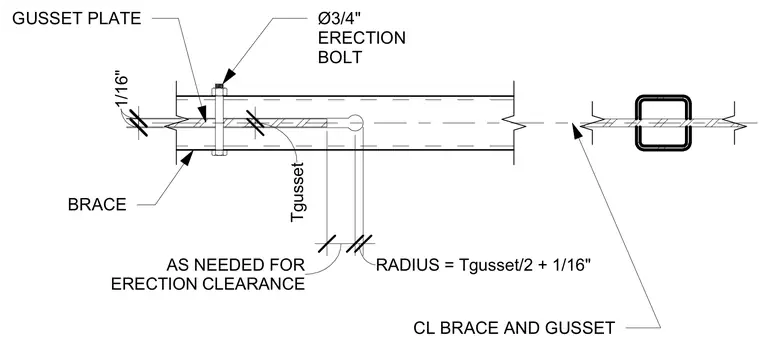

A gusset plate connects to a structural steel brace member using a three-quarter-inch diameter erection bolt for temporary alignment. The intersection incorporates a defined corner radius dimensioned as half the gusset thickness plus one-sixteenth of an inch. Erection clearance is provided as needed along the plate interface.
ERECTION CLEARANCE AS NEEDED FOR RADIUS = Tgusset/2 + 1/16" Tgusset 1/16" 1/16" BRACE Ø3/4" ERECTION BOLT GUSSET PLATE CL BRACE AND GUSSET
