Cold-formed steel stud framing utilizes a continuous lateral bracing angle fastened with two number ten screws at each stud. A fifty-four mil CRC channel is secured to the angle with two number ten screws at each location. The vertical spacing of the bracing assembly is set at four feet on center.

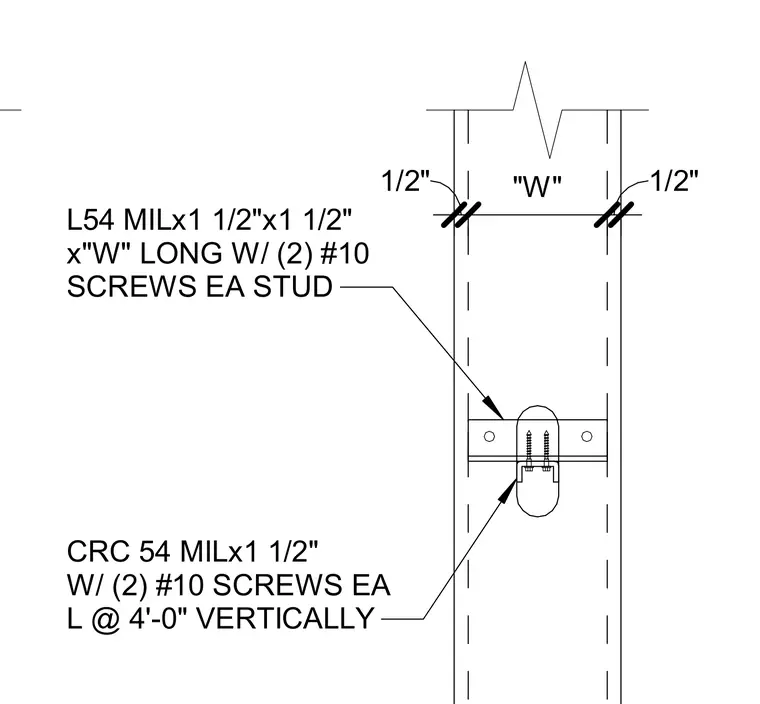

L54 MILx1 1/2"x1 1/2" x"W" LONG W/ (2) #10 SCREWS EA STUD CRC 54 MILx1 1/2" W/ (2) #10 SCREWS EA L @ 4'-0" VERTICALLY 1/2" "W" 1/2"
