Structural · S-BXETH

Typical Connection at Baseplate Weak Axis

Materials

Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Connections / Plates

Connections

Gusset Plate Base Plate / Anchorage Bolted Connection

About this detail

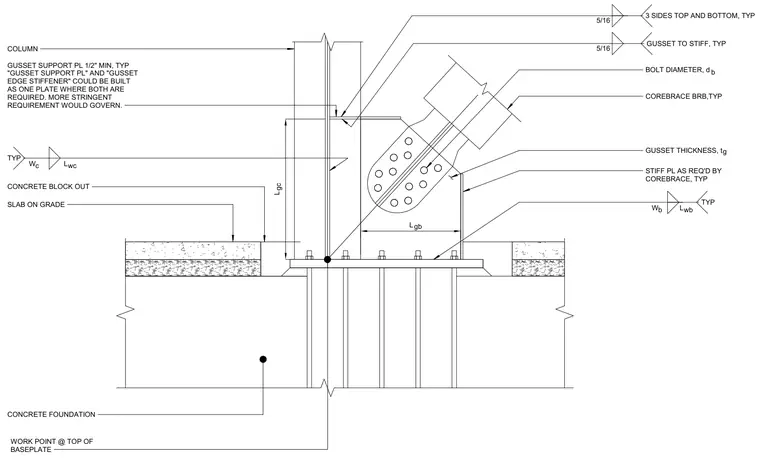

A structural column bears on a baseplate anchored to a concrete foundation, featuring a slab on grade with a concrete blockout surrounding the base. A CoreBrace buckling-restrained brace connects via a gusset plate welded to the column and stiffened with a gusset edge stiffener plate and a half-inch minimum gusset support plate. Five-sixteenth-inch fillet welds secure the gusset to the stiffener plate on three sides top and bottom as typical. Stiffener plates are installed as required by CoreBrace with specific dimensions and bolt diameters designated for the gusset connection.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
