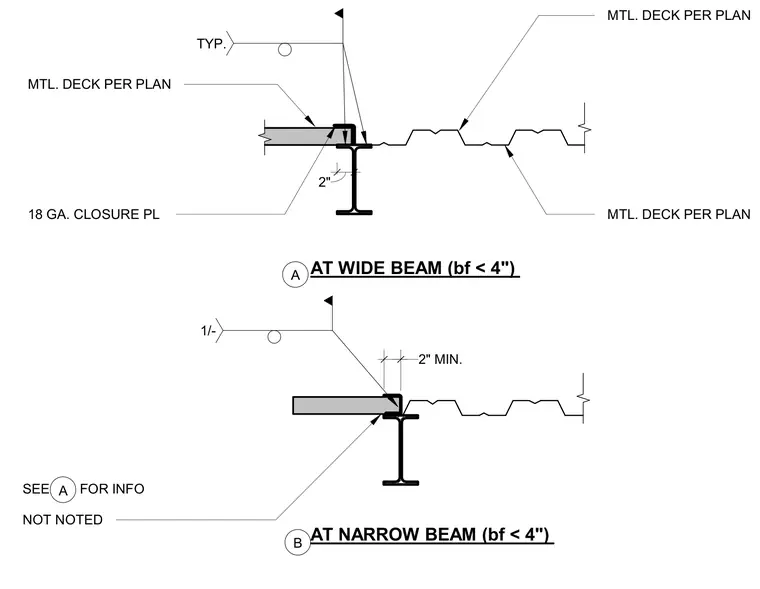

An eighteen-gauge closure plate spans across the steel beam flange to support the two-inch metal deck per plan. The assembly accommodates beam flange widths both greater than and less than four inches with a two-inch minimum bearing clearance. Standard connection details outline the termination of the metal deck profile at the structural steel framing.
2" MTL. DECK PER PLAN MTL. DECK PER PLAN 18 GA. CLOSURE PL AT WIDE BEAM (bf < 4") AT NARROW BEAM (bf < 4") A B SEE FOR INFO NOT NOTED A 2" MIN. MTL. DECK PER PLAN 1/- TYP.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
