Structural · S-BWNJP

Buckling-Restrained Brace Protected Zones Detail

Materials

Steel Metal (misc.)

Elements

Roofs Decks Millwork / Casework Connections / Plates

Connections

Deck Attachment

About this detail

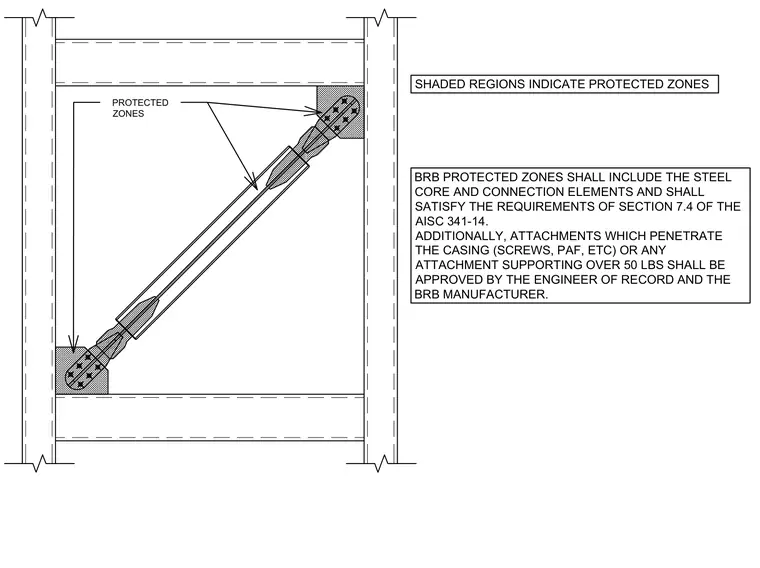

Shaded regions indicate protected zones on the buckling-restrained brace, including the steel core and connection elements, satisfying the requirements of Section 7.4 of the AISC 341-14 specification. Attachments that penetrate the casing, such as screws or powder-actuated fasteners, or any attachment supporting over fifty pounds require approval from the engineer of record and the buckling-restrained brace manufacturer.
