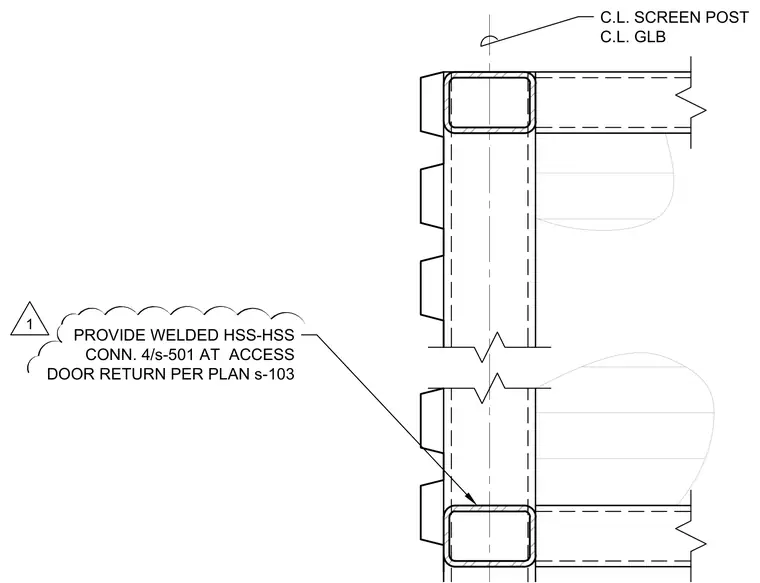

A hollow structural section screen post connects to a structural member via a welded joint at the access door return. The centerline aligns with the screen post and glb per the structural plan. A welded connection secures the hollow structural sections together.
C.L. SCREEN POST C.L. GLB PROVIDE WELDED HSS-HSS CONN. 4/s-501 AT ACCESS DOOR RETURN PER PLAN s-103 1
