Concrete Wall Opening Reinforcement Detail and Schedule

Elements

Beams Walls Foundations / Footings Reinforcing Roof / Floor Openings

Connections

About this detail

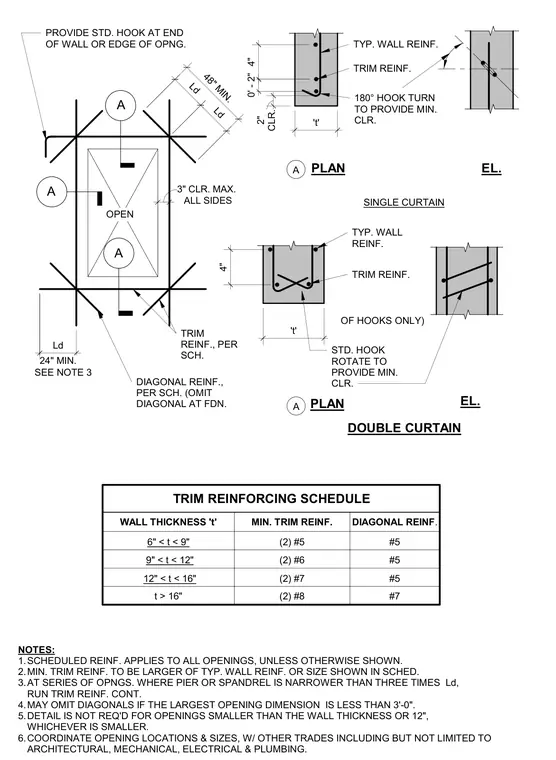

Concrete wall openings require perimeter trim reinforcing and diagonal corner bars sized according to wall thickness 't' per the trim reinforcing schedule. Standard hooks and development lengths apply at all edges and wall terminations, with single or double curtain placement specified on plan and elevation views. Diagonal reinforcing may be omitted at foundations and for openings smaller than three feet or wall thickness limits. Continuous trim reinforcing is required when piers or spandrels are narrower than three times the development length.
