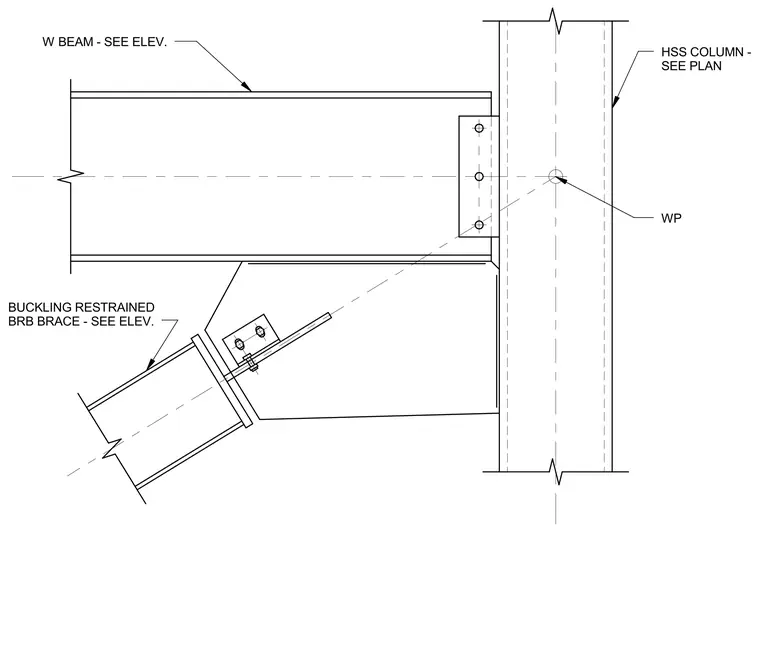

A wide-flange beam frames into a hollow structural section column, with sizing specified per elevation and plan drawings respectively. A buckling restrained brace connects to a gusset plate assembly centered on the work point, utilizing bolted connections for the brace interface and welded gusset plates at the column. The intersection aligns the beam web and brace centerline at a common work point on the column face.
W BEAM - SEE ELEV. BUCKLING RESTRAINED BRB BRACE - SEE ELEV. HSS COLUMN - SEE PLAN WP
