Structural · S-BW2HB

Typical Steel Column Base Plate Anchorage

Materials

Concrete Steel Masonry / CMU

Elements

Columns Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Embed Plate

About this detail

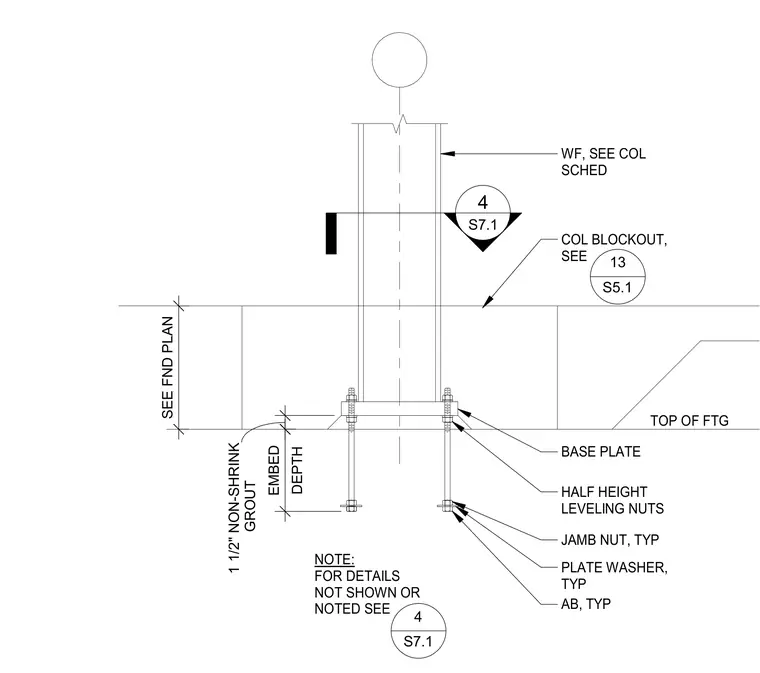

A wide-flange steel column bears on a base plate anchored to a concrete footing via anchor bolts equipped with plate washers, jamb nuts, and half-height leveling nuts. A one-and-a-half-inch layer of non-shrink grout fills the space beneath the base plate to the top of the footing. A column blockout is provided around the base per foundation plans, and the column size is determined from the structural schedule. Additional connections and details are referenced to sheet S7.1 and sheet S5.1.
