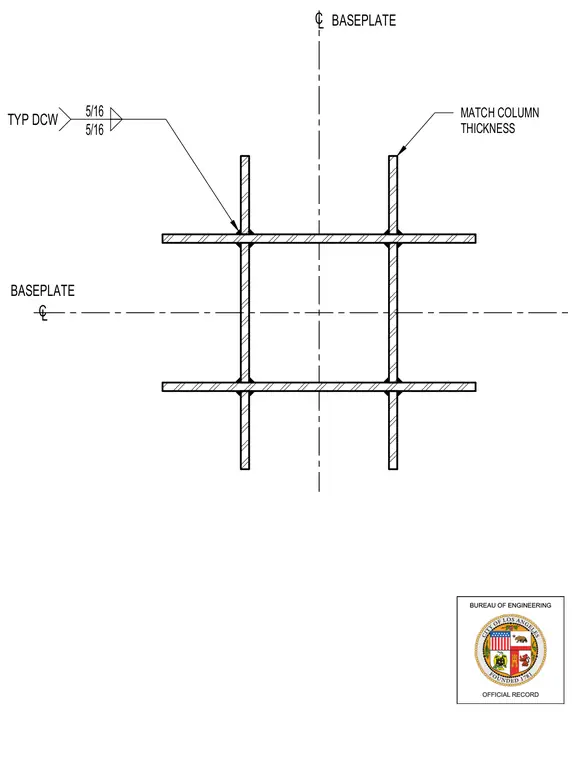

A structural steel column base plate is shown in plan view, centered on orthogonal axes. The base plate matches the column thickness. Five-sixteenths inch fillet welds are specified typically at the connection between the column flanges, webs, and the base plate.
C L BASEPLATE MATCH COLUMN THICKNESS C L BASEPLATE 5/16 5/16 TYP DCW BUREAU OF ENGINEERING OFFICIAL RECORD
