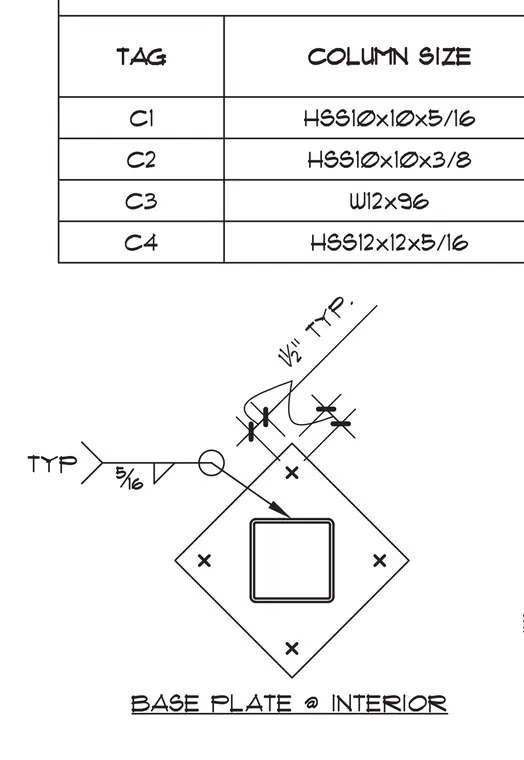

A structural column base plate detail accompanies a column size schedule. The schedule lists column tags C1 through C4 with corresponding member sizes including hollow structural sections and wide flange shapes. A square hollow structural section column centers on a diamond-oriented base plate with four anchor bolts marked by crosses. A five-sixteenths inch typical fillet weld connects the column to the base plate around its perimeter, indicated by a weld symbol with a field weld circle. Dimensions and typical clearances are noted across the plate configuration.
