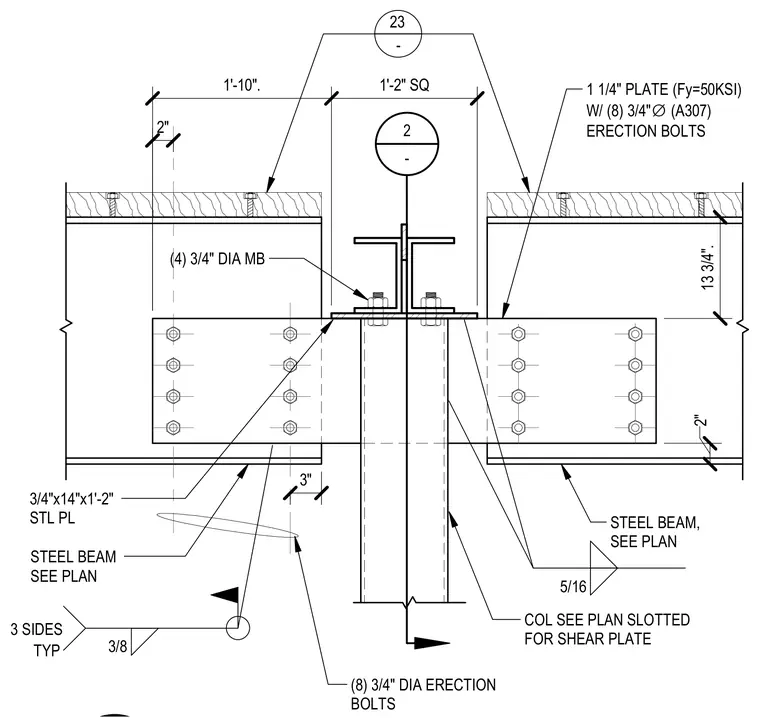

Steel beams frame into a column with a slotted web to receive a shear plate. The connection utilizes a one-and-one-quarter-inch thick plate with a yield strength of fifty KSI secured by eight three-quarter-inch diameter A307 erection bolts. Four three-quarter-inch diameter machine bolts fasten the top assembly with fillet welds specified at three-eighths inch on three sides typically and a five-sixteenth-inch weld at the shear plate. Steel beams are sized per plan and tied into the column support.
2" 1'-10". 1'-2" SQ 23 - 1 1/4" PLATE (Fy=50KSI) W/ (8) 3/4" ∅ (A307) ERECTION BOLTS (4) 3/4" DIA MB STEEL BEAM, SEE PLAN COL SEE PLAN SLOTTED FOR SHEAR PLATE 2 - 5/16 3/4"x14"x1'-2" STL PL STEEL BEAM SEE PLAN 3/8 3 SIDES TYP 3" (8) 3/4" DIA ERECTION BOLTS 2" 13 3/4".
