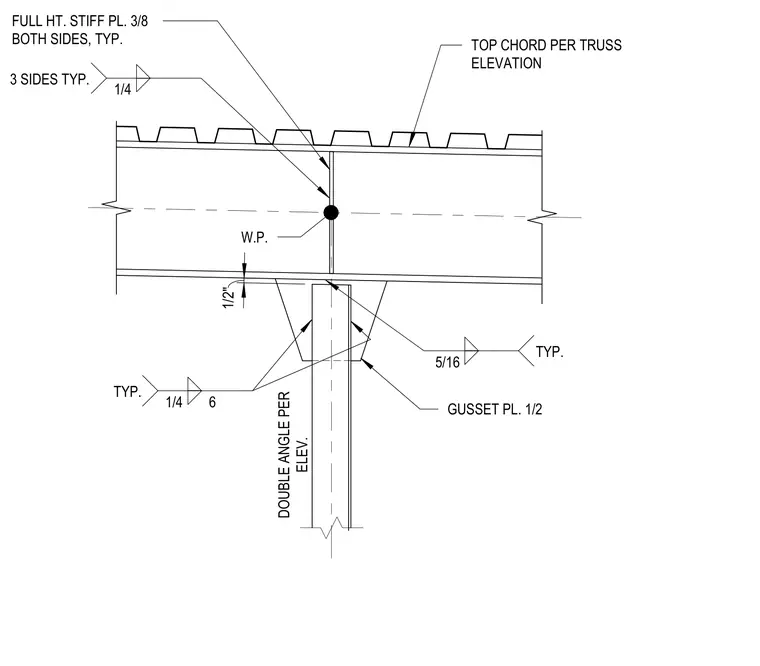

A structural steel truss intersection features a top chord sized per truss elevation connected to vertical double angle members sized per elevation. A half-inch thick gusset plate connects the web members with five-sixteenth-inch typical fillet welds. Three-eighths-inch full height stiffener plates are welded to both sides of the web using quarter-inch fillet welds on three sides typical. A working point establishes the intersection geometry at the truss centerline.
W.P. 5/16 TYP. FULL HT. STIFF PL. 3/8 BOTH SIDES, TYP. GUSSET PL. 1/2 1/4 3 SIDES TYP. TOP CHORD PER TRUSS ELEVATION 1/4 6 TYP. DOUBLE ANGLE PER ELEV. 1/2"
