Structural · S-BVTY8

Steel Shear Tab Connection Details

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Beam-to-Column Bolted Connection

About this detail

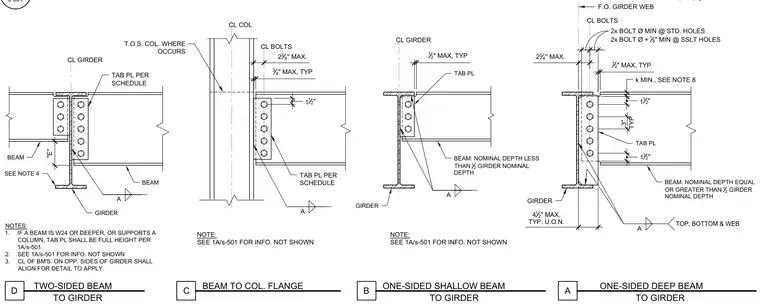

These structural details illustrate various steel shear tab connections including one-sided deep beam to girder, one-sided shallow beam to girder, beam to column flange, and two-sided beam to girder conditions. The connections utilize welded shear tab plates attached to supporting columns or girder webs with bolted beam web attachments. Standard holes use minimum bolt diameters, while short slotted holes incorporate increased clearances. Specific edge distances, maximum offsets, and stiffener plate requirements are noted for deep beams and concentrated loads.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
