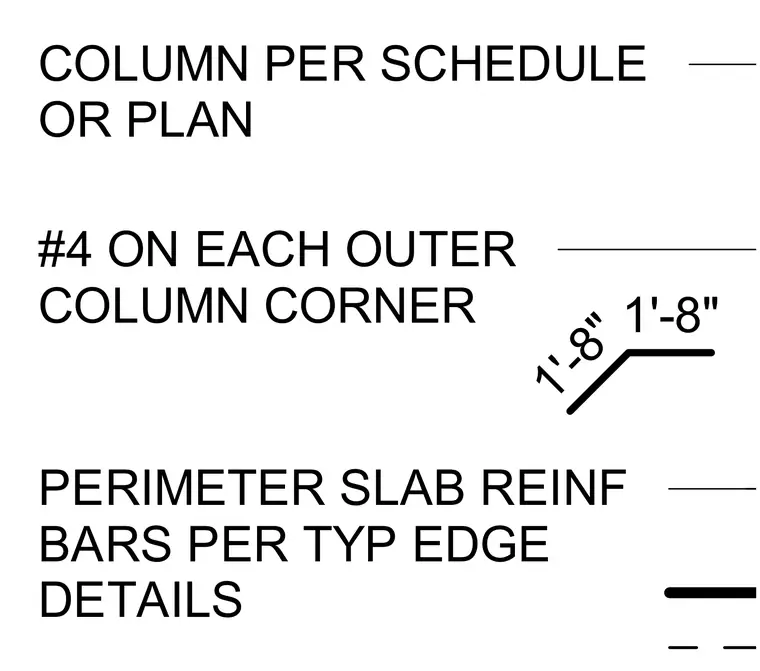

Columns are sized and placed per the structural schedule or plan. Number 4 reinforcing bars are positioned on each outer column corner with a one foot eight inch clearance. Perimeter slab reinforcement bars follow typical edge details.
COLUMN PER SCHEDULE OR PLAN #4 ON EACH OUTER COLUMN CORNER 1'-8" 1'-8" PERIMETER SLAB REINF BARS PER TYP EDGE DETAILS
