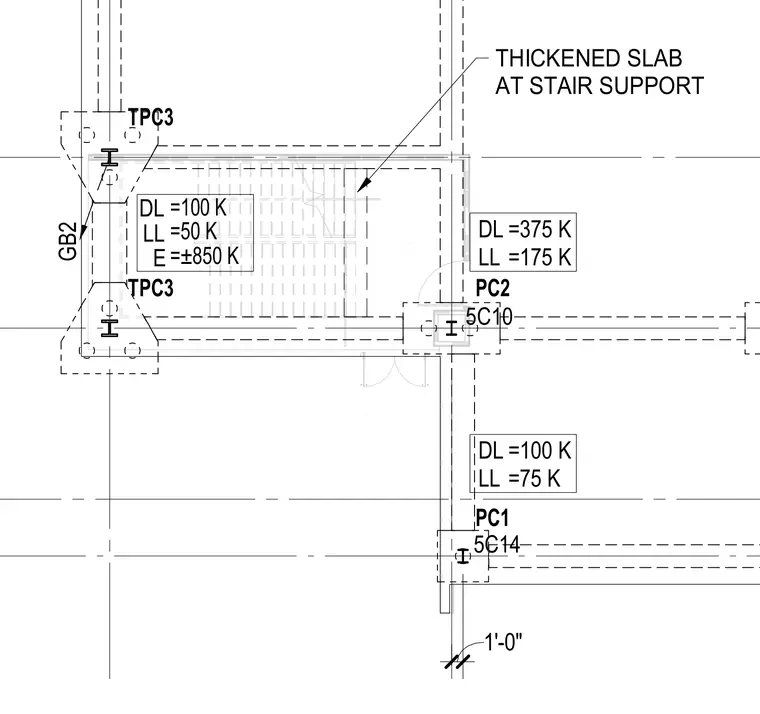

A thickened concrete slab supports a stair framing assembly with designated dead, live, and seismic load values. The layout incorporates grade beam GB2, structural columns PC1 and PC2, and ties into perimeter foundation elements. Dead load and live load values are specified for distinct zones within the stair support area.
TPC3 PC2 PC1 DL LL E =100 K =50 K =±850 K DL LL =375 K =175 K DL LL =100 K =75 K TPC3 GB2 THICKENED SLAB AT STAIR SUPPORT 5C10 1'-0" 5C14
