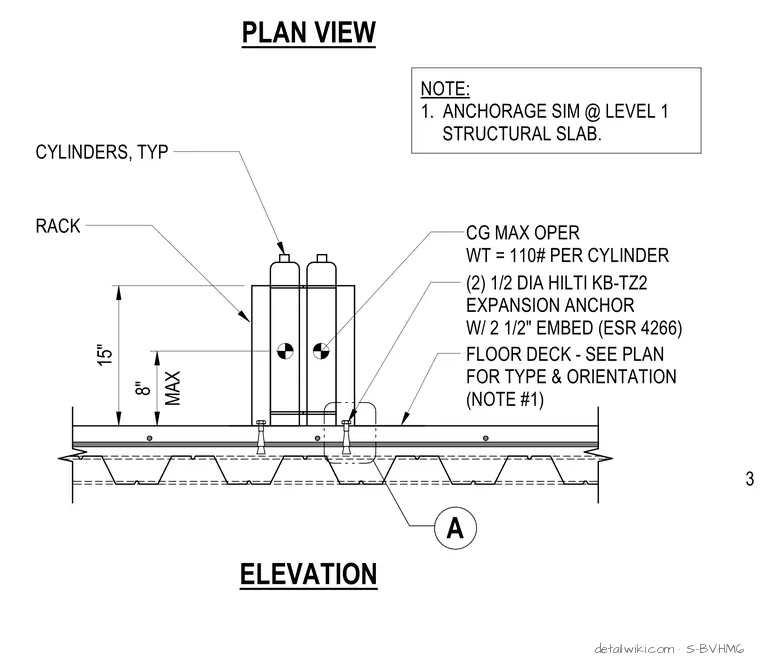

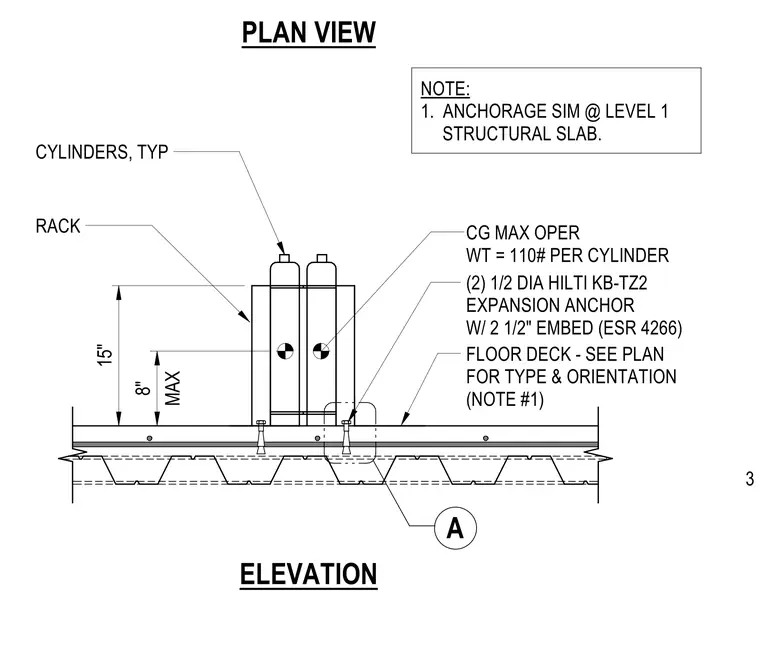

S-BVHM6 — Cylinder Rack Anchorage Detail (Xxxx)

Structural · S-BVHM6

Cylinder Rack Anchorage Detail (Xxxx)

Scale: SCALE: 1" = 1'-0"
Units: imperial
Discipline: Structural

Materials

Elements

Anchors / Embeds Decks Floors / Slabs

Connections

Base Plate / Anchorage Embed Plate

Text on the drawing

3 SIDES ELEVATION 15" RACK FLOOR DECK - SEE PLAN FOR TYPE & ORIENTATION (NOTE #1) CYLINDERS, TYP (2) 1/2 DIA HILTI KB-TZ2 EXPANSION ANCHOR W/ 2 1/2" EMBED (ESR 4266) CG MAX OPER WT = 110# PER CYLINDER MAX 8" PLAN VIEW A NOTE: 1. ANCHORAGE SIM @ LEVEL 1 STRUCTURAL SLAB.
