Structural · S-BVFNA

Exterior Slab Edge Detail

Materials

Concrete Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Floors / Slabs Decks Arches Bracing Connections / Plates

Connections

HSS Connection Bracing Connection Welded Connection Deck Attachment

About this detail

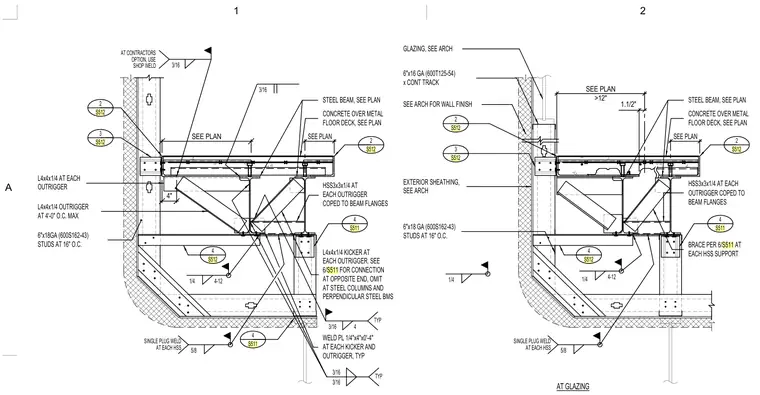

An exterior slab edge assembly features concrete over a metal floor deck supported by structural steel beams. Outriggers fabricated from hollow structural sections (HSS 3x3x1/4) are coped to the beam flanges and spaced at four feet on center maximum. Kickers made from L4x4x1/4 angles connect each outrigger with a welded plate measuring 1/4 inch by 4 inches by 4 inches, secured by three-sixteenths inch fillet welds. Cold-formed metal framing consists of six-inch by eighteen-gauge studs (600S162-43) at sixteen inches on center supporting exterior sheathing and continuous track at the glazing interface. Single five-eighths inch plug welds are applied at each hollow structural section connection.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
