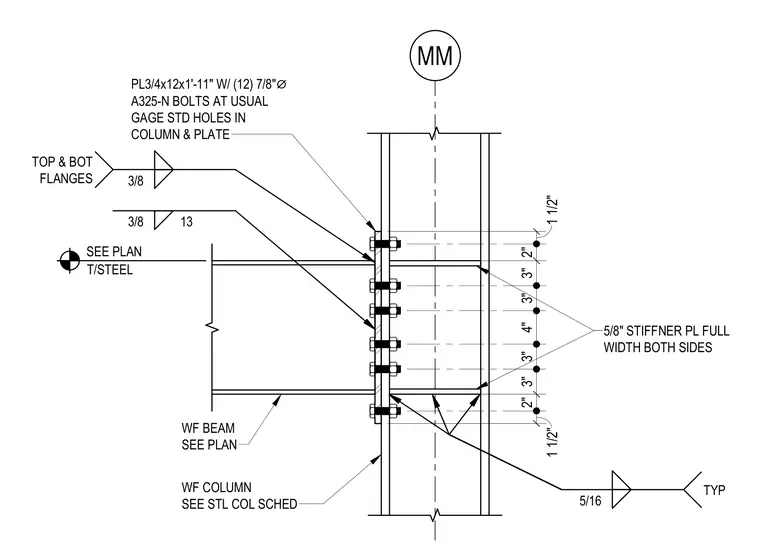

A wide-flange beam connects to a wide-flange column using a three-quarter-inch thick end plate secured by twelve seven-eighth-inch diameter A325-N bolts with standard holes in the column and plate. Three-eighths-inch fillet welds connect the top and bottom flanges. Five-eighths-inch full-width stiffener plates are welded to both sides of the column aligned with the beam flanges using five-sixteenths-inch typical fillet welds.
1 1/2" 2" 3" 3" 4" 3" 3" 2" 1 1/2" MM 3/8 TOP & BOT FLANGES WF BEAM SEE PLAN 5/8" STIFFNER PL FULL WIDTH BOTH SIDES 3/8 13 5/16 TYP WF COLUMN SEE STL COL SCHED T/STEEL SEE PLAN PL3/4x12x1'-11" W/ (12) 7/8" ⌀ A325-N BOLTS AT USUAL GAGE STD HOLES IN COLUMN & PLATE
