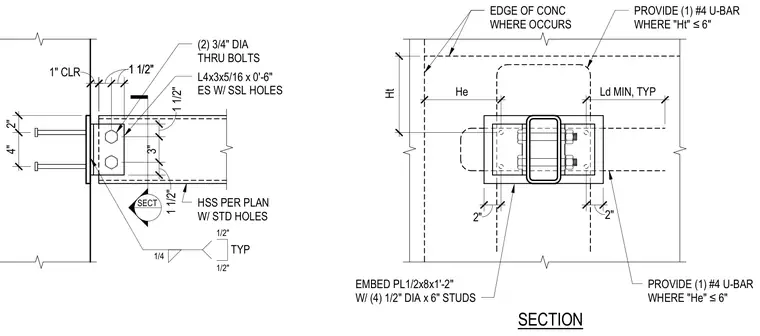

A hollow structural section member connects to an embed plate cast into a concrete element using two three-quarter-inch diameter through-bolts and two L4x3x5-sixteenths by zero-foot-six-inch angles with slotted holes. The embed plate measures one-half-inch by eight inches by one-foot-two-inches and features four one-half-inch diameter by six-inch studs welded with one-quarter-inch fillet welds typically. Additional reinforcement includes a number four U-bar provided where embedment height or edge distance is six inches or less relative to the concrete edge.
SECT 1" CLR HSS PER PLAN W/ STD HOLES SECTION EMBED PL1/2x8x1'-2" W/ (4) 1/2" DIA x 6" STUDS 1 1/2" 1 1/2" 1/4 1/2" 1/2" TYP L4x3x5/16 x 0'-6" ES W/ SSL HOLES 1 1/2" 3" 1 1/2" 2" 4" (2) 3/4" DIA THRU BOLTS 9" 9" He Ht 2" 2" 9 1/4" Ld MIN, TYP PROVIDE (1) #4 U-BAR WHERE "Ht" ≤6" PROVIDE (1) #4 U-BAR WHERE "He" ≤6" EDGE OF CONC WHERE OCCURS
