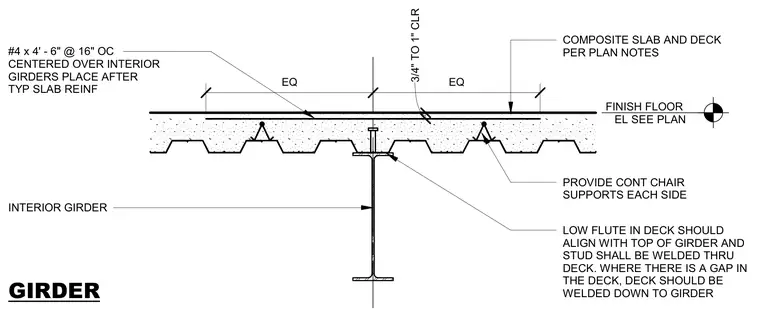

A composite concrete slab and metal deck bear directly on an interior steel girder with shear studs welded through the deck. Number four reinforcing bars spanning four feet six inches at sixteen inches on center are centered over the interior girder and placed after typical slab reinforcement. Continuous chair supports sit on each side beneath the reinforcement. The low flute in the deck aligns with the top of the girder, and gaps in the deck are welded down directly to the girder. A three-quarter to one-inch clearance is maintained.
FINISH FLOOR EL SEE PLAN INTERIOR GIRDER #4 x 4' - 6" @ 16" OC CENTERED OVER INTERIOR GIRDERS PLACE AFTER TYP SLAB REINF LOW FLUTE IN DECK SHOULD ALIGN WITH TOP OF GIRDER AND STUD SHALL BE WELDED THRU DECK. WHERE THERE IS A GAP IN THE DECK, DECK SHOULD BE WELDED DOWN TO GIRDER EQ EQ 3/4" TO 1" CLR COMPOSITE SLAB AND DECK PER PLAN NOTES GIRDER PROVIDE CONT CHAIR SUPPORTS EACH SIDE
