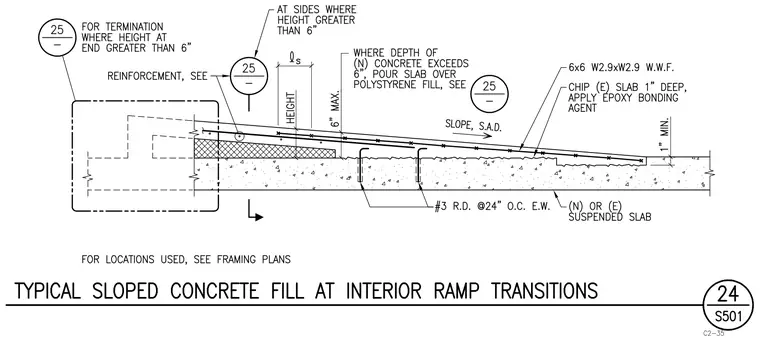

A sloped concrete fill transitions level changes at interior ramp conditions over a new or existing suspended concrete slab. Where the concrete depth exceeds six inches, the slab is poured over polystyrene fill. Welded wire fabric of six by six W2.9 by W2.9 size reinforces the fill, tied down with number three reinforcing dowels spaced at twenty-four inches on center each way. The existing slab is chipped one inch deep and treated with an epoxy bonding agent prior to the pour. A minimum one-inch thickness is maintained at the lower termination.
