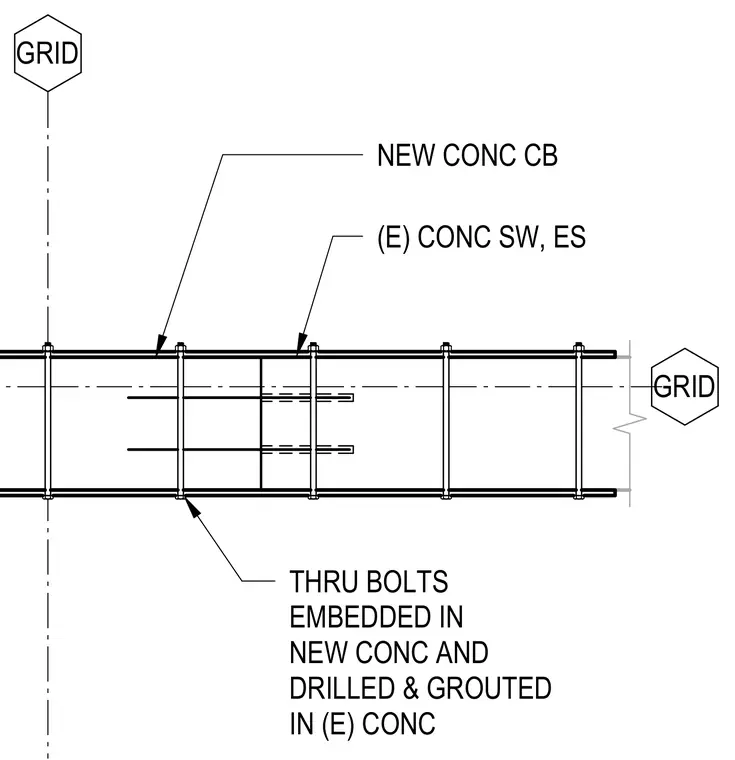

A new concrete curb connects to an existing concrete shear wall using through bolts embedded in the new concrete and drilled and grouted into the existing concrete. The assembly aligns with structural grid lines.
GRID GRID NEW CONC CB (E) CONC SW, ES THRU BOLTS EMBEDDED IN NEW CONC AND DRILLED & GROUTED IN (E) CONC
