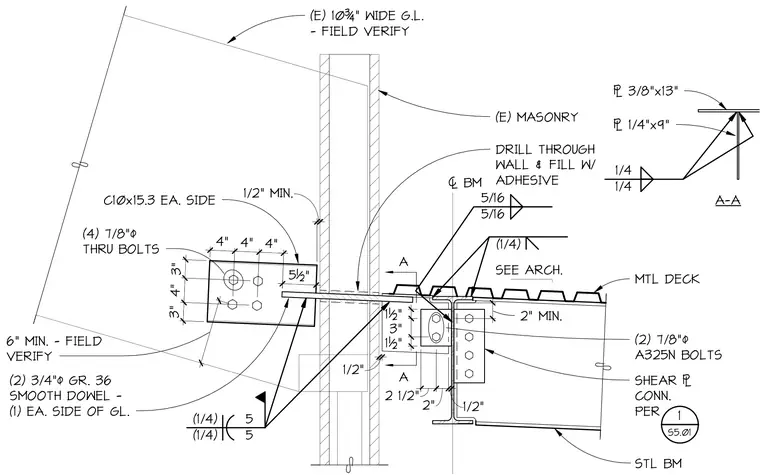

A steel beam supports a metal deck and connects via a shear plate using two 7/8-inch diameter A325N bolts. The masonry wall is penetrated with through bolts and anchored using two 3/4-inch diameter Grade 36 smooth dowels on each side of the grid line. Additional support is provided by C10x15.3 channels on each side of the wall connected with four 7/8-inch diameter through bolts, with holes drilled through the wall and filled with adhesive. Steel plates measuring 3/8 inch by 13 inches and 1/4 inch by 9 inches are detailed in section A-A with fillet welds specified.
SEE ARCH. (1/4) 5/16 5/16 (2) 7/8"6 A325N BOLTS SHEAR / CONN. PER 1 S5.01 STL BM MTL DECK DRILL THROUGH WALL & FILL W/ ADHESIVE (1/4) 5 (1/4) 5 (2) 3/4"6 GR. 36 SMOOTH DOWEL - (1) EA. SIDE OF GL. 6" MIN. - FIELD VERIFY (4) 7/8"6 THRU BOLTS C10x15.3 EA. SIDE 1/4 1/4 / 3/8"x13" / 1/4"x9" A-A (E) MASONRY (E) 10¾" WIDE G.L. - FIELD VERIFY 2 5 /8 " 1 1 /2" 3" 1 1 /2" 1/2" 2" 2 1/2" 1½" 3" 1½" 2" MIN. 4" 4" 4" 3" 4" 3" 5½" 1 0 5 /8" A A 1/2" . BM 1/2" MIN.
