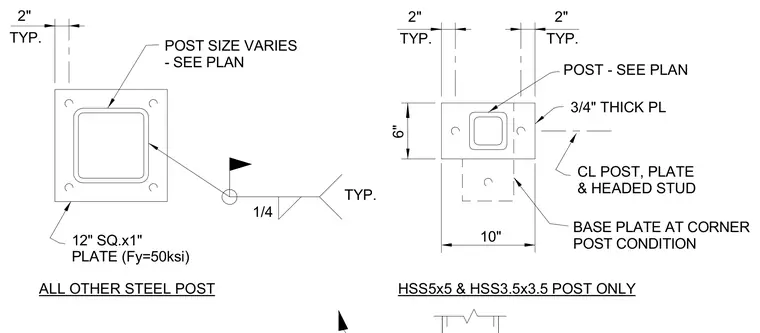

A hollow structural section steel post is welded to a base plate using a one-quarter inch fillet weld around the perimeter. Standard posts sit on a twelve-inch square by one-inch thick steel plate with a yield strength of fifty kilopounds per square inch, while specific sizes utilize a rectangular three-quarter inch thick plate. A corner post condition features an offset base plate configuration aligned with centerline indicators.
1/4 TYP. TYP. TYP. TYP. 10" 2" POST SIZE VARIES - SEE PLAN 12" SQ.x1" PLATE (Fy=50ksi) ALL OTHER STEEL POST 2" 2" 3/4" THICK PL CL POST, PLATE & HEADED STUD POST - SEE PLAN HSS5x5 & HSS3.5x3.5 POST ONLY BASE PLATE AT CORNER POST CONDITION 6"
