A structural steel base plate measuring 1 inch by 16 inches by 1 foot 4 inches is embedded with nine number 6 reinforcing bars and anchored into a concrete foundation. A pair of 3/8-inch by 4-inch by 1-foot 4-inch plates are welded typically to the lower dowels with 1/4-inch fillet welds. Side gusset plates measuring 1/2 inch by 10 inches by 1 foot 0 inches and 1/2 inch by 8 inches by 0 feet 10 inches are welded to the assembly with 5/16-inch fillet welds on three sides. Two number 8 vertical reinforcing bars extending 8 feet 0 inches long each side run through the connection zone above a two-and-a-half-inch grout layer.

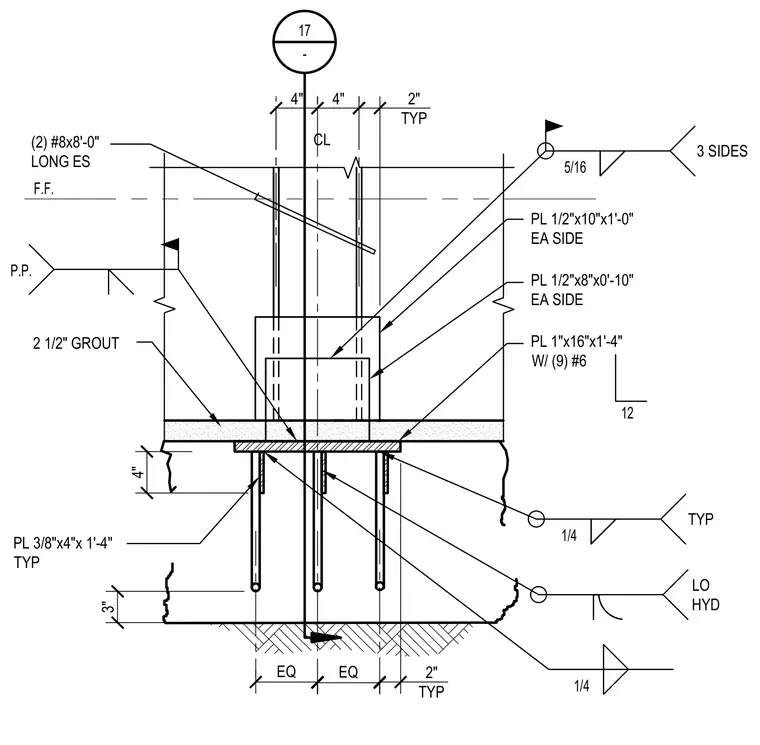

4" 3" PL 3/8"x4"x 1'-4" TYP LO HYD 2 1/2" GROUT F.F. (2) #8x8'-0" LONG ES PL 1"x16"x1'-4" W/ (9) #6 PL 1/2"x8"x0'-10" EA SIDE PL 1/2"x10"x1'-0" EA SIDE 17 - P.P. 2" TYP 1/4 1/4 TYP 5/16 3 SIDES 12 2" TYP EQ EQ 4" 4" CL
