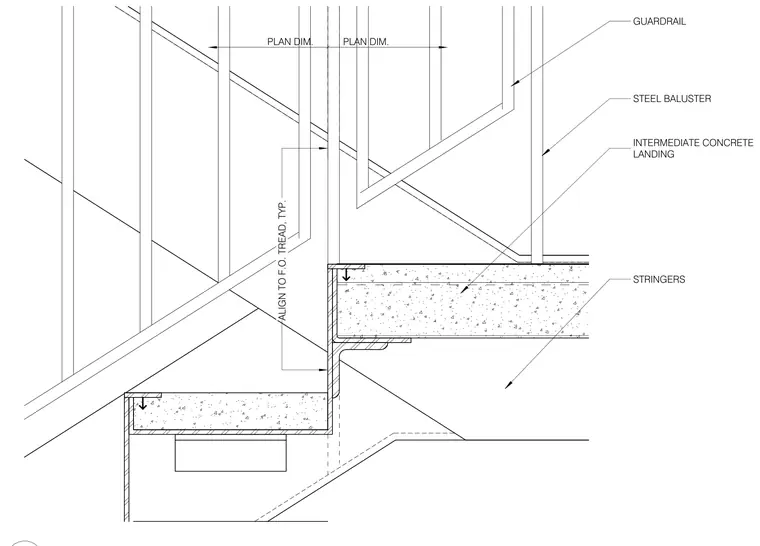

Steel stair stringers support concrete treads framing into an intermediate concrete landing. Steel balusters and a guardrail assembly anchor above the landing slab. Plan dimensions and face-of-tread alignments are noted for layout.
ALIGN TO F.O. TREAD, TYP. PLAN DIM. PLAN DIM. INTERMEDIATE CONCRETE LANDING STEEL BALUSTER GUARDRAIL STRINGERS
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
