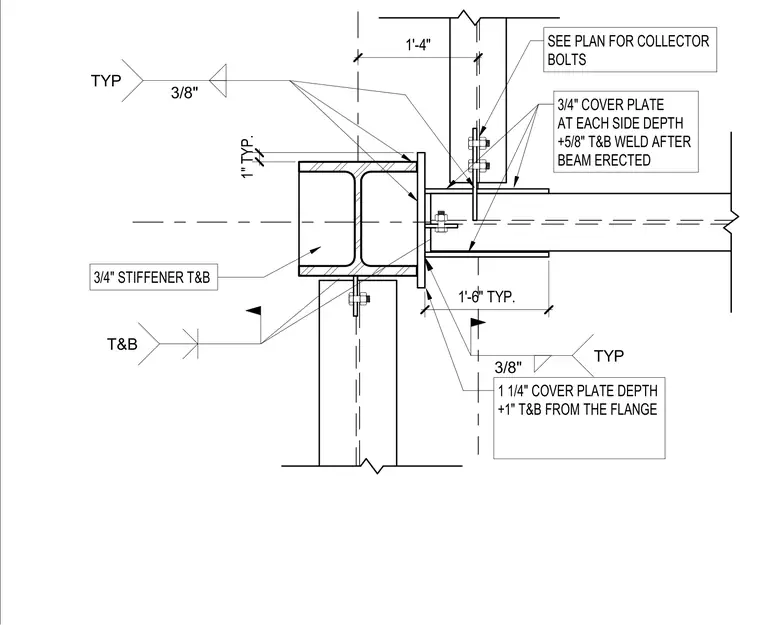

An offset steel beam acts as a collector member, framing into a support assembly with three-quarter-inch top and bottom stiffeners welded to the support column or member. Three-quarter-inch cover plates are positioned at each side of the beam web, extending five-eighths of an inch top and bottom and welded after the beam is erected. An additional one-and-one-quarter-inch cover plate extends one inch top and bottom from the flange. Collector bolts are sized per plan and installed through the connection plates.
3/8" TYP 1" TYP. 3/8" TYP 3/4" COVER PLATE AT EACH SIDE DEPTH +5/8" T&B WELD AFTER BEAM ERECTED 1'-6" TYP. 1 1/4" COVER PLATE DEPTH +1" T&B FROM THE FLANGE SEE PLAN FOR COLLECTOR BOLTS T&B 1'-4" 3/4" STIFFENER T&B
