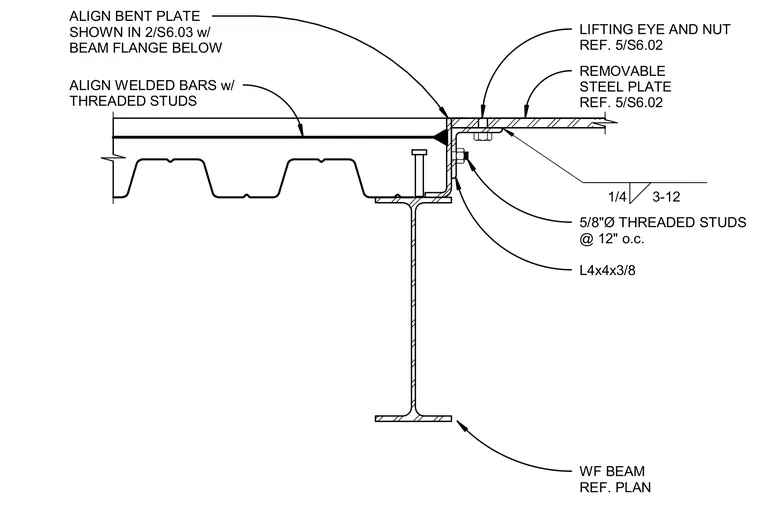

A removable steel floor plate bears on a structural steel wide flange beam utilizing an L4x4x3/8 angle support. The assembly features a bent plate aligned with the beam flange below and welded bars paired with five-eighths inch diameter threaded studs spaced at twelve inches on center. A lifting eye and nut secure the removable steel plate, while a one-quarter inch weld joins the adjacent components.
REMOVABLE STEEL PLATE REF. 5/S6.02 1/4 3-12 5/8"Ø THREADED STUDS @ 12" o.c. L4x4x3/8 WF BEAM REF. PLAN ALIGN WELDED BARS w/ THREADED STUDS LIFTING EYE AND NUT REF. 5/S6.02 ALIGN BENT PLATE SHOWN IN 2/S6.03 w/ BEAM FLANGE BELOW
