Structural · S-BT5NE

Typical Beam to Beam and Beam to Column Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Beam-to-Column Beam-to-Beam Welded Connection Bolted Connection

About this detail

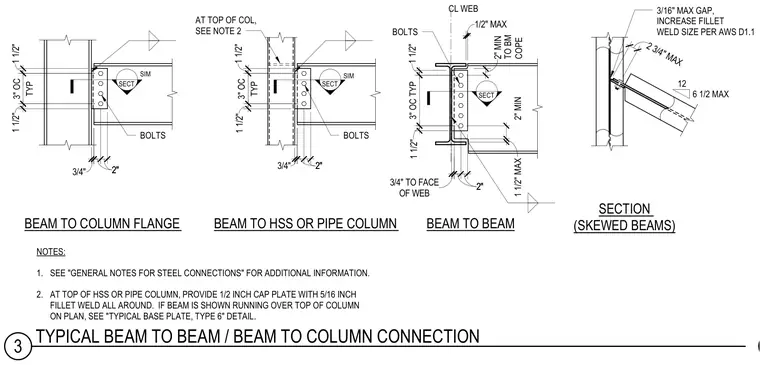

Standard steel framing connections comprise beam-to-column flange, beam-to-HSS or pipe column, beam-to-beam, and skewed beam conditions. The connections utilize three-quarter-inch bolts and shear tabs with specified edge distances and spacing, such as three-inch on-center typical spacing and standard clearances. At the top of hollow structural section or pipe columns, a one-half-inch cap plate is provided with a five-sixteenth-inch fillet weld all around. Skewed beam configurations accommodate fit-up gaps up to three-sixteenths of an inch with fillet weld sizing increased per AWS D1.1 section requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
