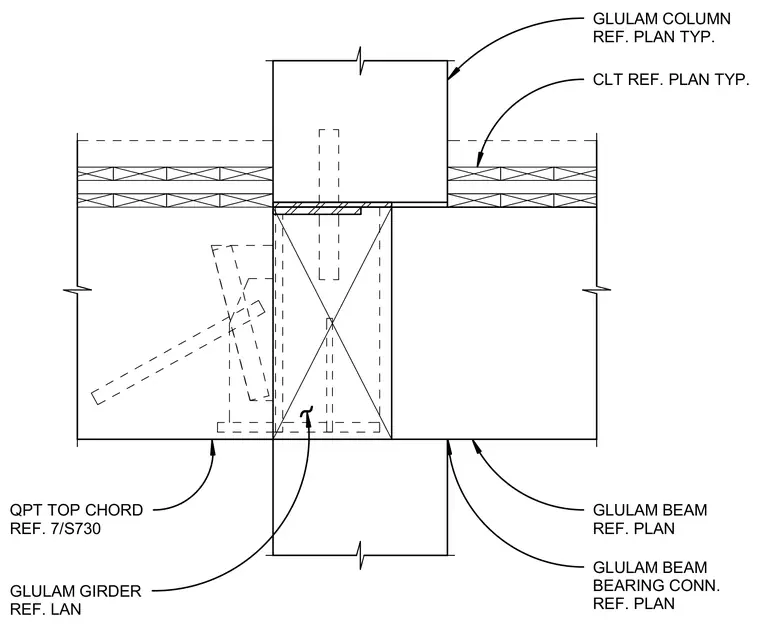

A glulam column bears upon a glulam girder with cross-laminated timber panels framing past the column profile. Glulam beams connect to the girder using bearing connections sized per plan. A top chord member frames diagonally into the assembly referencing detail 7 on sheet S730.
GLULAM COLUMN REF. PLAN TYP. CLT REF. PLAN TYP. GLULAM BEAM REF. PLAN GLULAM BEAM BEARING CONN. REF. PLAN QPT TOP CHORD REF. 7/S730 GLULAM GIRDER REF. LAN
