Cold-formed steel framing connects at a structural steel beam and metal deck assembly, integrating CMU wall elements and slip track configurations. Vertical 800S162-54 studs spaced at twenty-four inches on center offset from the structural beam centerline to align the finish flush with the CMU wall exterior face. The track framing utilizes 800T150-54 members secured with number ten self-tapping screw fasteners at each flange and Hiliti P8 TH powder-actuated shot pins spaced at twelve to sixteen inches on center. A continuous sixteen-gauge break shape with a one-and-a-half-inch vertical leg connects via number ten self-tapping screws to stud flanges and high flutes of the metal deck. A sixteen-gauge slip track with two rows of number ten self-tapping screws at twelve inches on center accommodates vertical deflection above structural members. Lapped stud extensions including 1400S162-54 members provide continuous vertical alignment with a three-inch minimum lap and a designated three-quarter-inch gap.

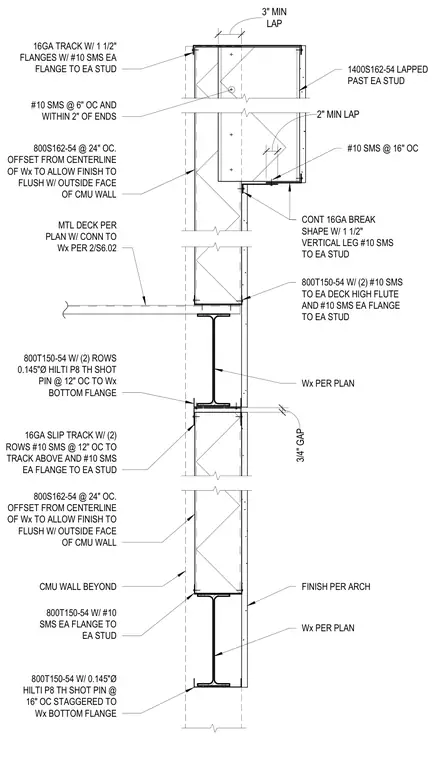

MTL DECK PER PLAN W/ CONN TO Wx PER 2/S6.02 800S162-54 @ 24" OC. OFFSET FROM CENTERLINE OF Wx TO ALLOW FINISH TO FLUSH W/ OUTSIDE FACE OF CMU WALL CMU WALL BEYOND 800T150-54 W/ #10 SMS EA FLANGE TO EA STUD 800T150-54 W/ 0.145"Ø HILTI P8 TH SHOT PIN @ 16" OC STAGGERED TO Wx BOTTOM FLANGE 800T150-54 W/ (2) ROWS 0.145"Ø HILTI P8 TH SHOT PIN @ 12" OC TO Wx BOTTOM FLANGE 16GA SLIP TRACK W/ (2) ROWS #10 SMS @ 12" OC TO TRACK ABOVE AND #10 SMS EA FLANGE TO EA STUD Wx PER PLAN Wx PER PLAN 800S162-54 @ 24" OC. OFFSET FROM CENTERLINE OF Wx TO ALLOW FINISH TO FLUSH W/ OUTSIDE FACE OF CMU WALL CONT 16GA BREAK SHAPE W/ 1 1/2" VERTICAL LEG #10 SMS TO EA STUD 800T150-54 W/ (2) #10 SMS TO EA DECK HIGH FLUTE AND #10 SMS EA FLANGE TO EA STUD 3/4" GAP 2" MIN LAP #10 SMS @ 16" OC 1400S162-54 LAPPED PAST EA STUD 16GA TRACK W/ 1 1/2" FLANGES W/ #10 SMS EA FLANGE TO EA STUD #10 SMS @ 6" OC AND WITHIN 2" OF ENDS LAP 3" MIN FINISH PER ARCH
