A steel pile includes a precut back flange and web prior to installation, with the front flange cut once excavation extends below four feet in front of the pile. A half-inch by flange width by twenty-four-inch fifty KSI steel plate is attached with typical five-sixteenth-inch fillet welds.

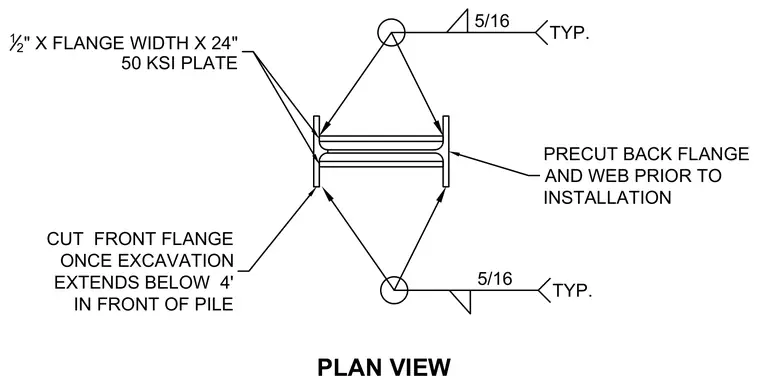

12 " X FLANGE WIDTH X 24" 50 KSI PLATE PRECUT BACK FLANGE AND WEB PRIOR TO INSTALLATION PLAN VIEW CUT FRONT FLANGE ONCE EXCAVATION EXTENDS BELOW 4' IN FRONT OF PILE 5/16 TYP. 5/16 TYP.
