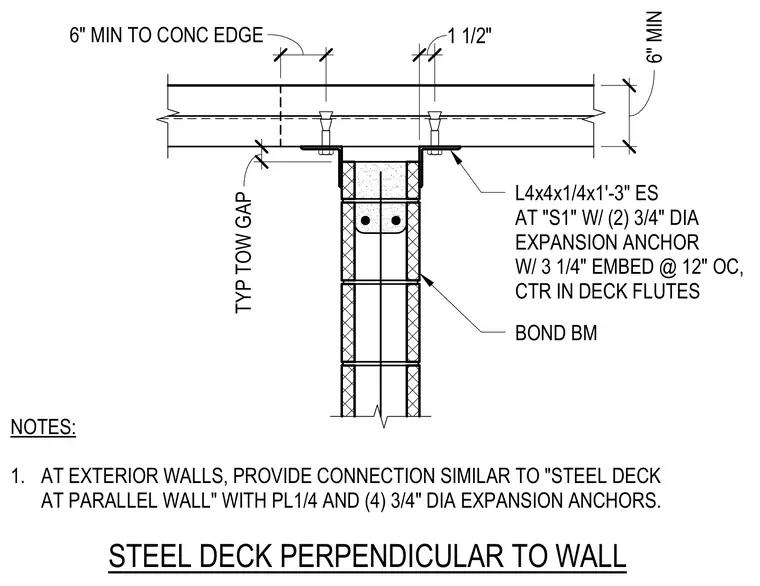

Steel deck bears perpendicular to a bond beam wall utilizing an L4x4x1/4 by 1 foot 3 inch angle placed on each side. Two three-quarter-inch diameter expansion anchors with 3 and a quarter inches of embedment secure the angle, centered in the deck flutes at 12 inches on center. A typical top of wall gap is maintained, with a minimum 6-inch clearance to the concrete edge. Exterior wall connections require a plate and four three-quarter-inch expansion anchors similar to parallel wall details.
L4x4x1/4x1'-3" ES AT "S1" W/ (2) 3/4" DIA EXPANSION ANCHOR W/ 3 1/4" EMBED @ 12" OC, CTR IN DECK FLUTES BOND BM STEEL DECK PERPENDICULAR TO WALL 1 1/2" TYP TOW GAP 4 1/2" 6" 6" MIN 6" MIN TO CONC EDGE 1 1/2" NOTES: 1. AT EXTERIOR WALLS, PROVIDE CONNECTION SIMILAR TO "STEEL DECK AT PARALLEL WALL" WITH PL1/4 AND (4) 3/4" DIA EXPANSION ANCHORS.
