Structural · S-BS8FF

Fall Protection Anchorage Attachment at Metal Deck and Joist

Materials

Steel Metal (misc.)

Elements

Beams Decks

Connections

Welded Connection Deck Attachment

About this detail

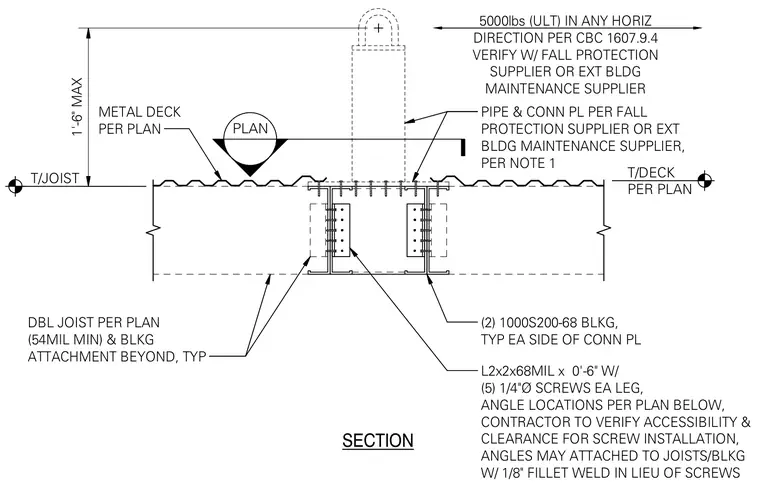

A fall protection pipe anchor and connection plate mount over a metal deck and connect to double joists spanning per plan. Two 1000S200-68 cold-formed steel blocking members tie into each side of the connection plate. L2x2x68mil angles measuring zero feet six inches long attach with five quarter-inch diameter screws on each leg. The contractor must verify accessibility and clearance for screw installation, and angles may attach to joists and blocking with a one-eighth-inch fillet weld in lieu of screws when permitted. The anchor assembly resists five thousand pounds ultimate load in any horizontal direction per CBC section 1607.9.4 and requires verification with the fall protection or exterior building maintenance supplier.
