A concrete masonry unit wall runs parallel beneath a steel roof deck supported by a roof joist or wide-flange beam. Continuous C5x6.7 channels for 8-inch CMU or C5x9 channels for 12-inch CMU attach to each side of the masonry wall at an 8-foot maximum span, welded with quarter-inch fillet welds. The masonry extends at least one course above the channels to meet the underside of the roof structure. A compressible fire-rated filler seals the top gap between the masonry bond beam and the corrugated steel roof deck.

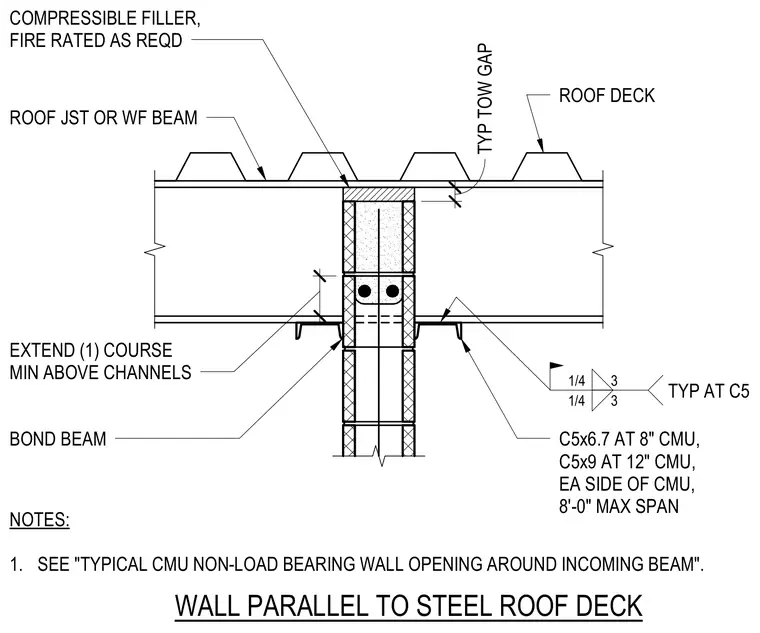

1 1/2" EXTEND (1) COURSE MIN ABOVE CHANNELS TYP AT C5 3 3 1/4 1/4 C5x6.7 AT 8" CMU, C5x9 AT 12" CMU, EA SIDE OF CMU, 8'-0" MAX SPAN ROOF DECK ROOF JST OR WF BEAM COMPRESSIBLE FILLER, FIRE RATED AS REQD WALL PARALLEL TO STEEL ROOF DECK 4 1/4" BOND BEAM NOTES: 1. SEE "TYPICAL CMU NON-LOAD BEARING WALL OPENING AROUND INCOMING BEAM". TYP TOW GAP
