Bolted Angle Brace Connection Configuration B

Connections

About this detail

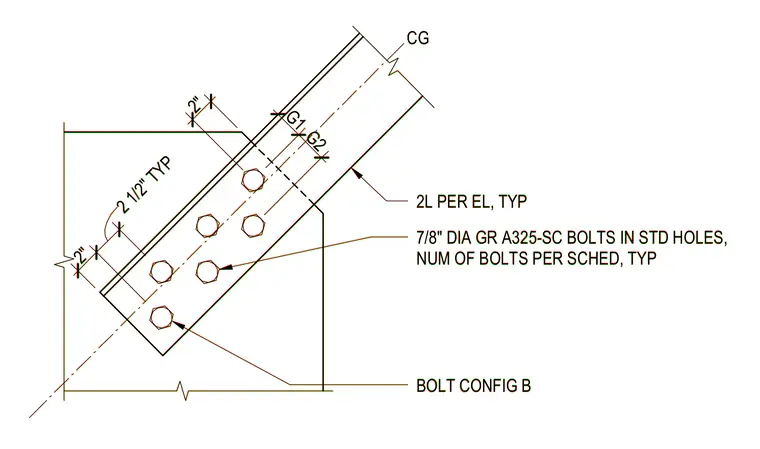

This structural connection utilizes double angles connected with seven-eighths inch diameter Grade A325-SC slip-critical bolts in standard holes. The bolt configuration features standard edge distances including two inches and two and a half inches typically, with specified gauges G1 and G2. The quantity of bolts is determined per the structural schedule.
