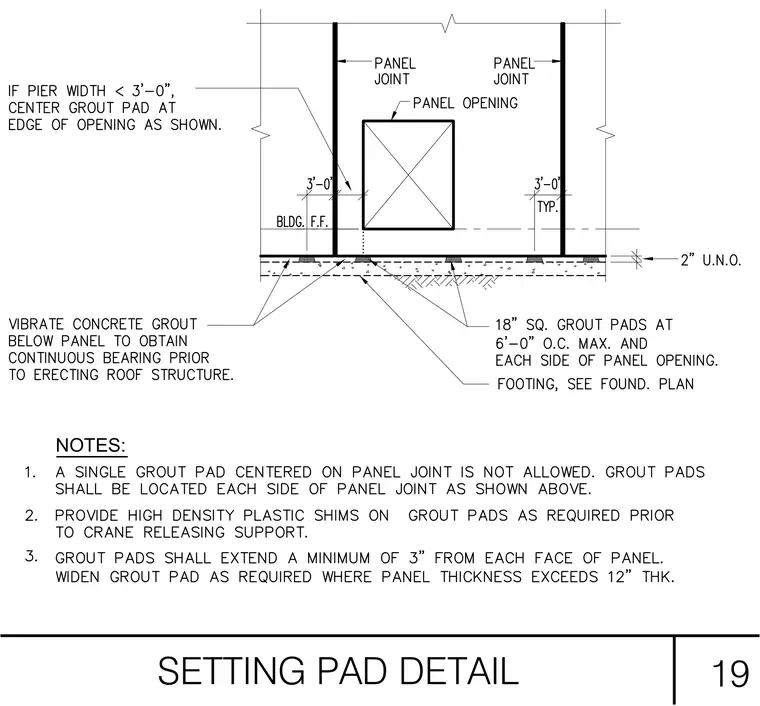

Eighteen-inch square grout pads are spaced at a maximum of six feet on center and positioned on each side of panel openings along a concrete footing. Concrete grout below the panel must be vibrated to obtain continuous bearing prior to erecting the roof structure. High-density plastic shims are provided on the grout pads as required prior to releasing crane support. Grout pads extend a minimum of three inches from each face of the panel and widen where panel thickness exceeds twelve inches.
