Structural · S-BRVYB

Floor Edge Detail ( At Curtain Wall )

Materials

Concrete Steel Metal (misc.)

Elements

Walls Curtain Walls Floors / Slabs Decks Arches Bracing Connections / Plates

Connections

Bracing Connection Welded Connection Bolted Connection Deck Attachment

About this detail

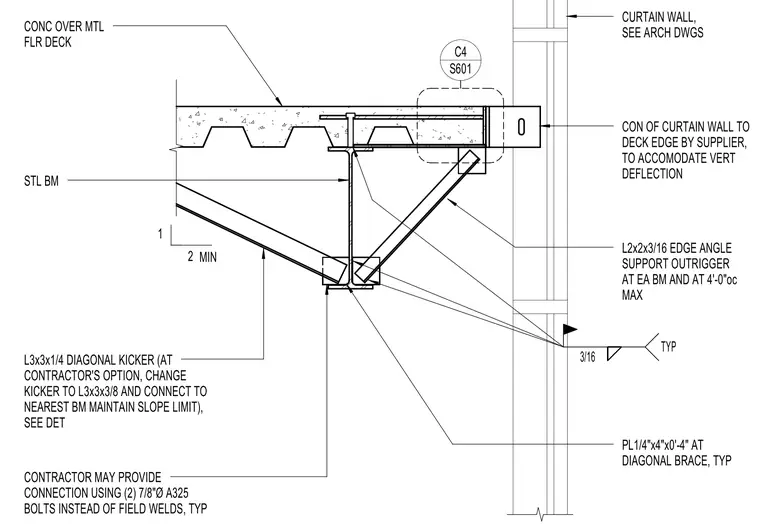

A concrete slab over metal floor deck bears on a steel beam supporting an edge angle and an outrigger at each beam and at four feet zero inches on center maximum. An L3x3x1/4 diagonal kicker angle braces the assembly with a 1/4 inch by 4 inch by 0 feet 4 inch plate at the diagonal brace, featuring typical 3/16 inch fillet welds. Contractors may optionally use an L3x3x3/8 kicker connected to the nearest beam while maintaining slope limits, or provide a connection using two 7/8 inch diameter A325 bolts instead of field welds. The curtain wall connects to the deck edge per architectural drawings and supplier specifications to accommodate vertical deflection.
