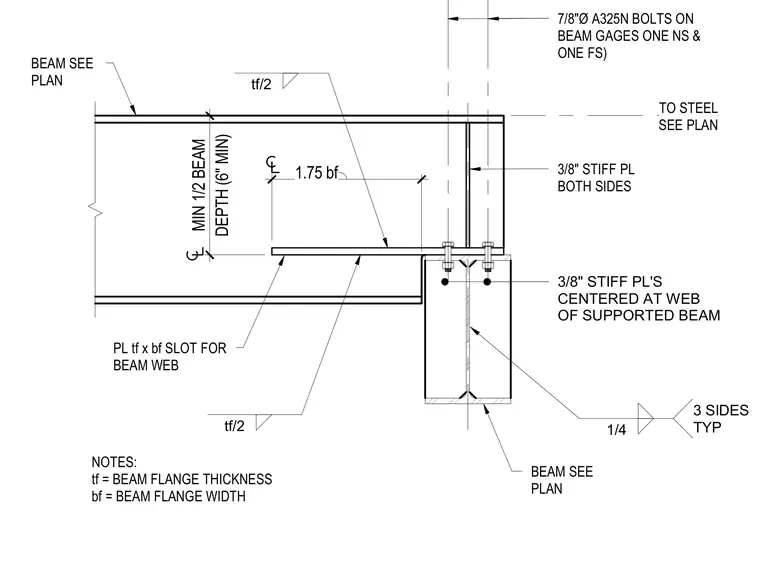

This structural steel detail shows a supported beam framing into a supporting beam using a seated connection. The supported beam features a slotted bottom flange to accommodate the seat plate, with a minimum depth clearance specified as one-half the beam depth or six inches minimum. Three-eighths-inch stiffener plates are welded to both sides of the supporting beam web, centered with the supported beam web. Seven-eighths-inch diameter A325-N bolts fasten the connection on beam gauges, with one bolt near side and one far side. Fillet welds of one-quarter-inch size are applied on three sides typically.
NOTES: tf = BEAM FLANGE THICKNESS bf = BEAM FLANGE WIDTH PL tf x bf SLOT FOR BEAM WEB BEAM SEE PLAN TO STEEL SEE PLAN BEAM SEE PLAN 3/8" STIFF PL'S CENTERED AT WEB OF SUPPORTED BEAM 3/8" STIFF PL BOTH SIDES 7/8"Ø A325N BOLTS ON BEAM GAGES ONE NS & ONE FS) 1.75 bf tf/2 DEPTH (6" MIN) MIN 1/2 BEAM 1/4 3 SIDES TYP tf/2
