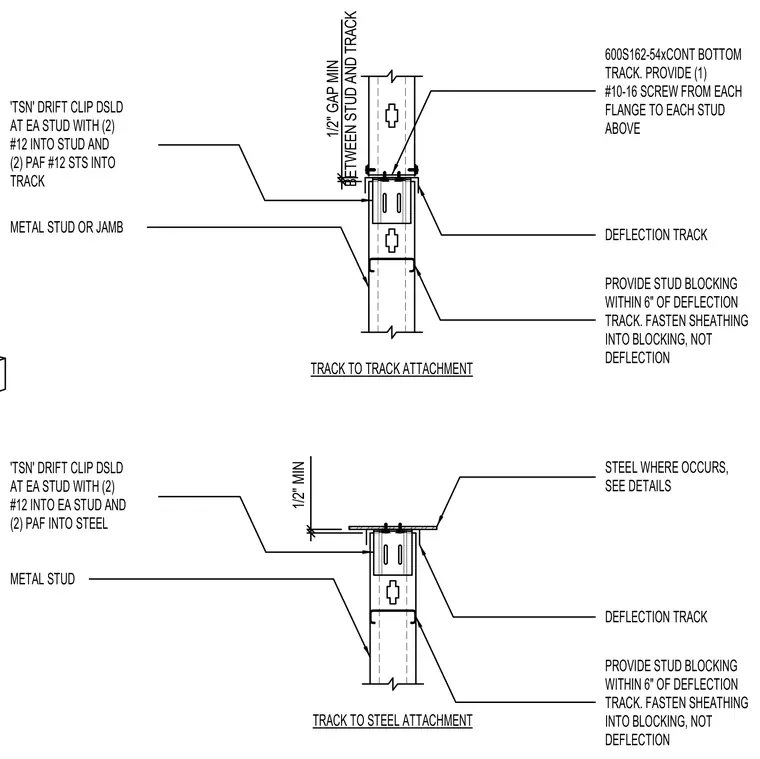

Cold-formed steel stud framing connects to overhead structural support using a deflection track and drift clip assembly. A minimum one-half inch gap is maintained between the stud and track to allow for vertical deflection. A TSN drift clip fastens to each stud using two number twelve screws and secures to the overhead steel or track using two powder-actuated fasteners. Stud blocking is installed within six inches of the deflection track to receive sheathing fasteners rather than fastening into the moving deflection track. A continuous bottom track of size 600S162-54 is secured with one number ten by sixteen screw from each flange to each stud above.
STEEL WHERE OCCURS, SEE DETAILS TRACK TO TRACK ATTACHMENT 600S162-54xCONT BOTTOM TRACK. PROVIDE (1) #10-16 SCREW FROM EACH FLANGE TO EACH STUD ABOVE PROVIDE STUD BLOCKING WITHIN 6" OF DEFLECTION TRACK. FASTEN SHEATHING INTO BLOCKING, NOT DEFLECTION DEFLECTION TRACK METAL STUD OR JAMB TRACK TO STEEL ATTACHMENT PROVIDE STUD BLOCKING WITHIN 6" OF DEFLECTION TRACK. FASTEN SHEATHING INTO BLOCKING, NOT DEFLECTION DEFLECTION TRACK 'TSN' DRIFT CLIP DSLD AT EA STUD WITH (2) #12 INTO EA STUD AND (2) PAF INTO STEEL 'TSN' DRIFT CLIP DSLD AT EA STUD WITH (2) #12 INTO STUD AND (2) PAF #12 STS INTO METAL STUD TRACK 1/2" GAP MIN BETWEEN STUD AND TRACK 1/2" MIN
