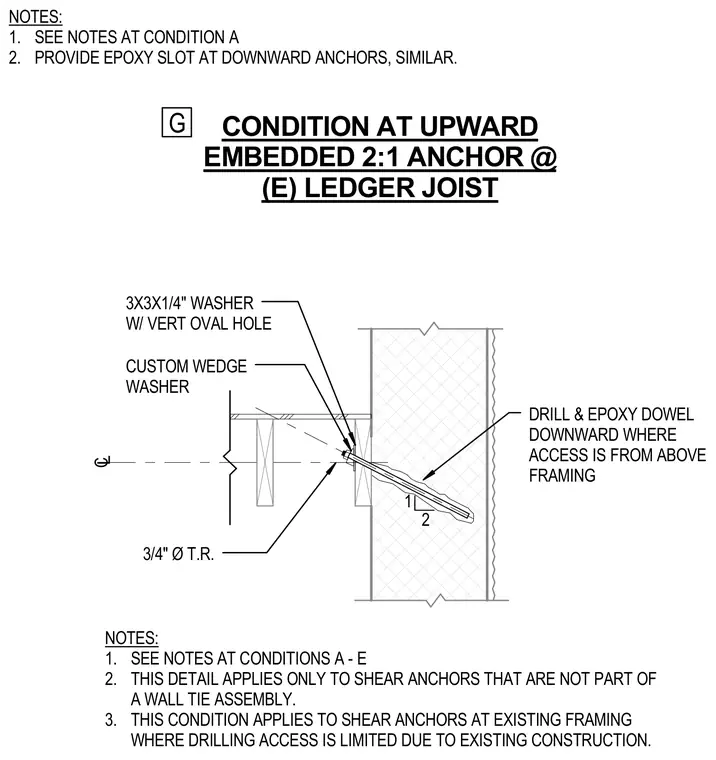

An upward embedded 2:1 shear anchor ties into an existing ledger joist using a three-quarter-inch threaded rod. The assembly includes a custom wedge washer paired with a three-by-three-by-one-quarter-inch steel washer featuring a vertical oval hole. A drilled epoxy dowel is provided downward where access is available from above the framing. This condition applies specifically to shear anchors at existing framing with limited drilling access that are not part of a wall tie assembly.
CONDITION AT UPWARD EMBEDDED 2:1 ANCHOR @ (E) LEDGER JOIST G NOTES: 1. SEE NOTES AT CONDITION A 2. PROVIDE EPOXY SLOT AT DOWNWARD ANCHORS, SIMILAR. DRILL & EPOXY DOWEL DOWNWARD WHERE ACCESS IS FROM ABOVE FRAMING 2 1 3/4" Ø T.R. L C NOTES: 1. SEE NOTES AT CONDITIONS A - E 2. THIS DETAIL APPLIES ONLY TO SHEAR ANCHORS THAT ARE NOT PART OF A WALL TIE ASSEMBLY. 3. THIS CONDITION APPLIES TO SHEAR ANCHORS AT EXISTING FRAMING WHERE DRILLING ACCESS IS LIMITED DUE TO EXISTING CONSTRUCTION. 3X3X1/4" WASHER W/ VERT OVAL HOLE CUSTOM WEDGE WASHER
