Structural · S-BRFY4

Buckling-Restrained Braced Frame Column Base Plate Connection

Materials

Elements

Columns Foundations / Footings Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection Bolted Connection Embed Plate

About this detail

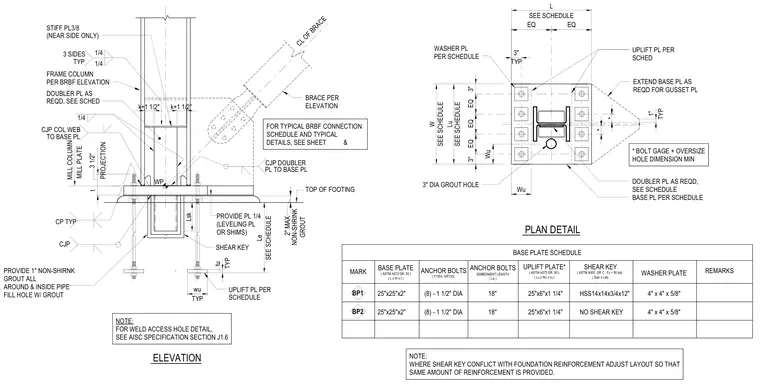

This structural steel detail shows a buckling-restrained braced frame column base plate connection complete with elevation and plan views alongside a base plate schedule. The steel column features a three-eighths-inch thick stiffener plate on the near side only, with doubler plates and complete joint penetration welds securing the column web to the base plate. A hollow structural section shear key extends downward into a concrete footing with one inch of non-shrink grout placed all around and inside the pipe, and the fill hole filled with grout. Anchor rods of grade one hundred five pass through washer plates and the base plate, anchored to the concrete foundation. An uplift plate extends from the base plate to tie into the brace gusset connection, supported by leveling plates or shims over a two-inch maximum non-shrink grout bed.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
