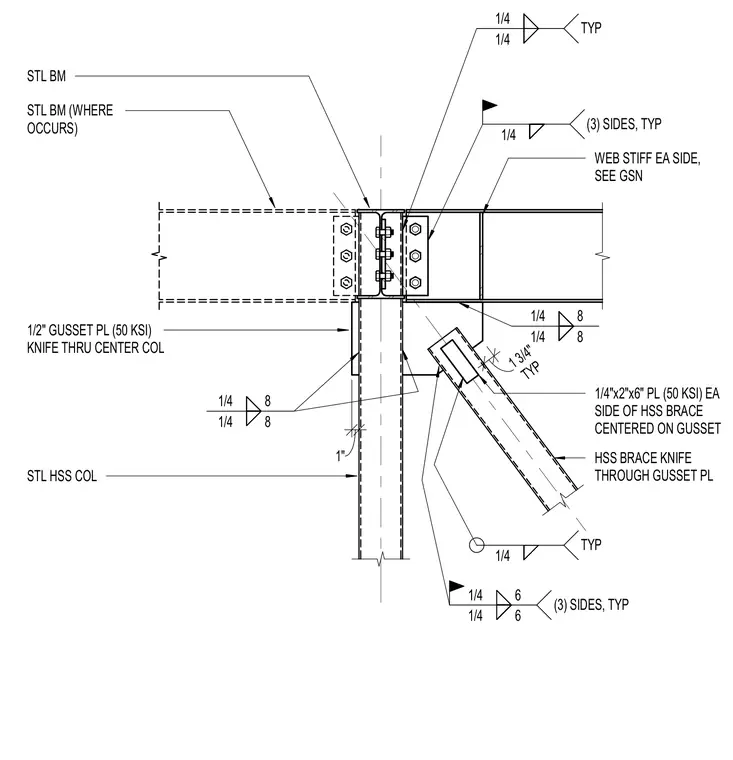

A structural steel frame connection details a hollow structural section column supporting steel beams and a diagonal brace. A half-inch thick fifty ksi gusset plate passes through the center of the column web with web stiffeners on each side. An HSS brace connects via a knife plate detail centered on the gusset plate, secured with quarter-inch welds on three sides. Additional quarter-inch by two-inch by six-inch plates are welded to each side of the HSS brace. Steel beams frame into the column connection with bolted clip angles and fillet welds.
STL BM STL BM (WHERE OCCURS) 1/2" GUSSET PL (50 KSI) KNIFE THRU CENTER COL WEB STIFF EA SIDE, SEE GSN 1/4"x2"x6" PL (50 KSI) EA SIDE OF HSS BRACE CENTERED ON GUSSET HSS BRACE KNIFE THROUGH GUSSET PL STL HSS COL 1" 1/4 1/4 6 6 (3) SIDES, TYP 1/4 TYP 1/4 1/4 8 8 1/4 1/4 8 8 1/4 (3) SIDES, TYP 1/4 1/4 TYP TYP 1 3/4"
