A skewed beam connects to a supporting beam web or column flange using a connection plate with variable weld sizes and preparation depending on the root opening. Condition A applies when the root opening exceeds three-eighths of an inch, requiring specific plate sizing and a one-fourth-inch fillet weld. Condition B handles root openings between three-sixteenths and three-eighths of an inch using a complete joint penetration weld. Condition C applies when the root opening is three-sixteenths of an inch or less, utilizing a ninety-degree angle connection. The connection layout accommodates a maximum sixty-degree skew angle and a four-and-one-half-inch maximum offset to the center line of bolts.

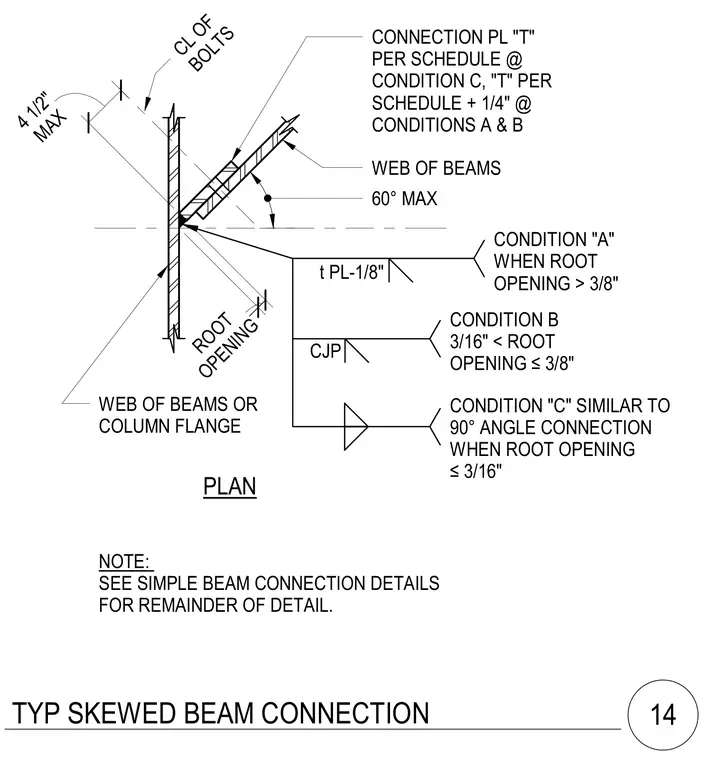

WEB OF BEAMS CONNECTION PL "T" PER SCHEDULE @ CONDITION C, "T" PER SCHEDULE + 1/4" @ CONDITIONS A & B NOTE: SEE SIMPLE BEAM CONNECTION DETAILS FOR REMAINDER OF DETAIL. PLAN CONDITION "A" WHEN ROOT OPENING > 3/8" CONDITION "C" SIMILAR TO 90° ANGLE CONNECTION WHEN ROOT OPENING ≤3/16" WEB OF BEAMS OR COLUMN FLANGE CL OF BOLTS OPENING ROOT t PL-1/8" MAX 4 1/2" CJP CONDITION B 3/16" < ROOT OPENING ≤3/8" 60° MAX TYP SKEWED BEAM CONNECTION 14
