Structural · S-BR86B

Wide Flange Column at Pier Footing

Materials

Concrete Steel

Elements

Columns Walls Floors / Slabs Foundations / Footings Stem Walls Anchors / Embeds

Connections

Embed Plate

About this detail

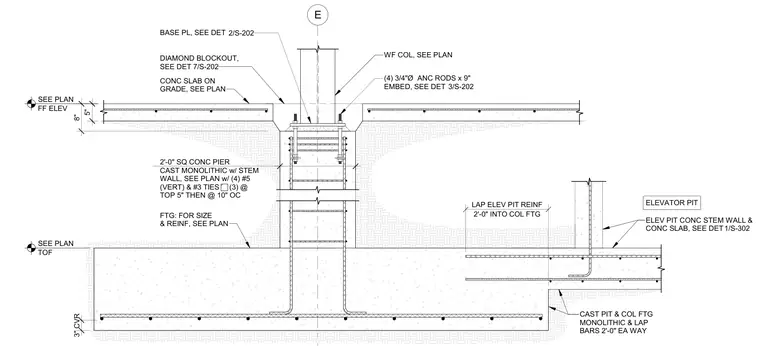

A wide flange column connects with a base plate secured by four three-quarter-inch diameter anchor rods with nine-inch embedment. The column base rests on a two-foot square concrete pier cast monolithic with the stem wall and reinforced with four number five vertical bars and number three ties spaced at five inches at the top then ten inches on center. The concrete slab on grade surrounds a diamond blockout at the column base. The pier ties into a foundation footing with sizing and reinforcement sized per plan. Adjacent to the pier, an elevator pit concrete stem wall and slab connect with the column footing by lapping elevator pit reinforcement two feet each way into the column footing.
