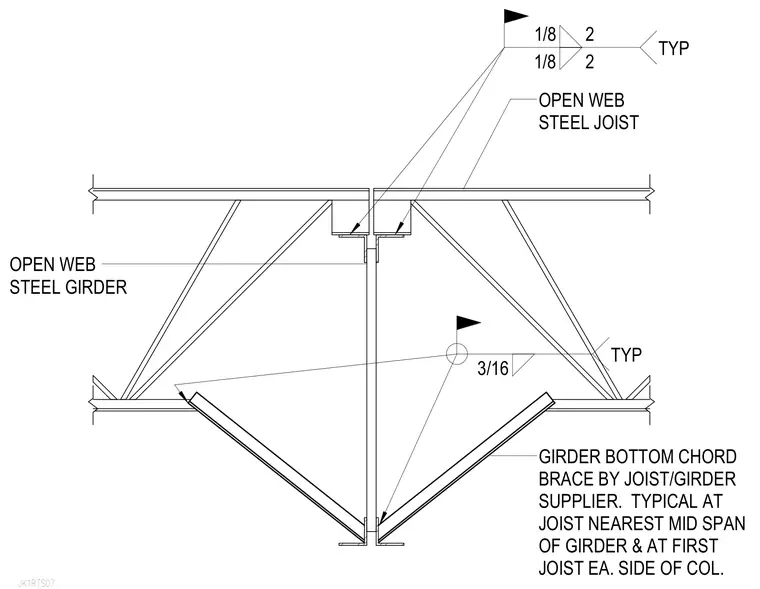

An open web steel joist bears onto an open web steel girder with field welds specified at the bearing seats. A girder bottom chord brace is provided by the joist and girder supplier at the joist nearest mid-span of the girder and at the first joist on each side of the column. Connections utilize typical fillet welds denoted on the drawing.
OPEN WEB STEEL GIRDER GIRDER BOTTOM CHORD BRACE BY JOIST/GIRDER SUPPLIER. TYPICAL AT JOIST NEAREST MID SPAN OF GIRDER & AT FIRST JOIST EA. SIDE OF COL. OPEN WEB STEEL JOIST 1/8 2 1/8 2 TYP 3/16 TYP
