Structural · S-BR35J

Typical Raised Equipment Pad

Materials

Concrete Metal (misc.)

Elements

Floors / Slabs Decks Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

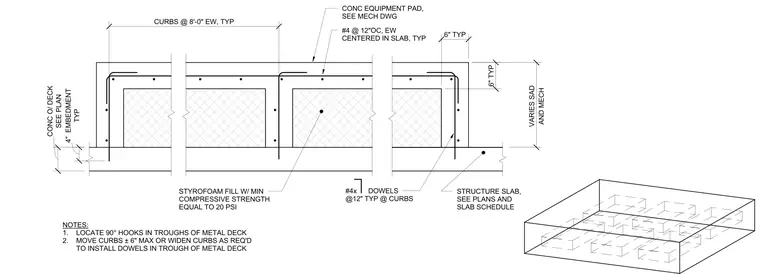

A raised concrete equipment pad is constructed over a structural concrete slab on metal deck. The pad incorporates styrofoam fill with a minimum compressive strength of 20 psi to reduce dead load, shaped with curbs spaced at eight feet on center. Reinforcing consists of number four bars centered in the slab at twelve inches on center each way, tied into number four dowels spaced at twelve inches on center at the curbs with ninety-degree hooks located in the troughs of the metal deck. The structural slab is detailed per plans and slab schedule, requiring curbs to be moved up to six inches maximum or widened as necessary to properly align dowels within the metal deck troughs.
