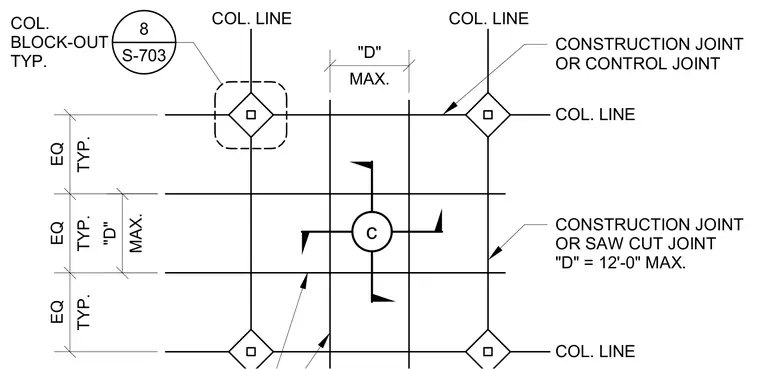

Concrete slab joint layout showing maximum distance spacing of twelve feet for construction joints, control joints, or saw cut joints between column lines. Typical equal spacing dimensions apply across the grid. Column lines intersect at typical column block-outs with a maximum dimension "D" indicated.
COL. LINE COL. LINE COL. LINE COL. LINE TYP. EQ TYP. EQ TYP. EQ MAX. "D" MAX. "D" CONSTRUCTION JOINT OR SAW CUT JOINT "D" = 12'-0" MAX. CONSTRUCTION JOINT OR CONTROL JOINT COL. BLOCK-OUT TYP. c S-703 8
